Brand:AXIS
Model: P3228-LV
Lens Focal length 3.5 - 10 mm
Horizontal field of view 100 - 38 °
Vertical field of view 51-22 °

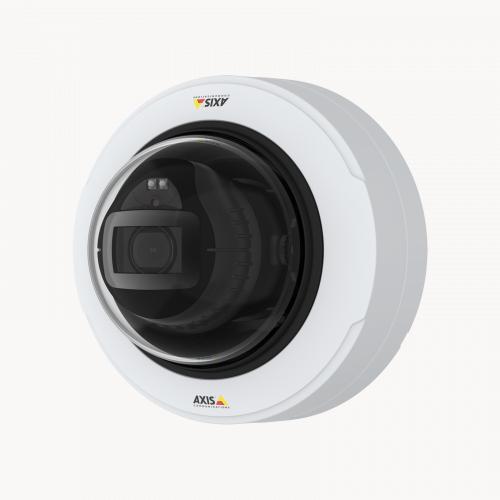

AXIS P3228-LV Network Camera
Discontinued Product,Recommended replacements AXIS P3248-LV
Streamlined 4K fixed dome for any light conditions
AXIS P3228-LV is a streamlined 4K fixed dome that features a varifocal lens with remote zoom and focus, which facilitates installation and eliminates the need for hands-on fine tuning. Equipped with Forensic WDR to handle scenes
with strong variations in light, Lightfinder technology, as well as built-in IR illumination with OptimizedIR, this versatile
camera provides exceptional video quality in any light conditions. It supports Axis Zipstream technology that significantly reduces bandwidth and storage requirements.
> 4K video in full frame rate
> Forensic WDR and Lightfinder
> OptimizedIR illumination
> Remote zoom and focus
> Zipstream for reduced bandwidth and storage needs
Camera
Image sensor Progressive scan RGB CMOS 1/2.5”
Lens Varifocal, 3.5–10 mm, F1.7
Horizontal field of view: 100°-38°
Vertical field of view: 51°–22°
Remote zoom and focus, P-Iris control, IR corrected
Day and night Automatically removable infrared-cut filter
Minimum
illumination
Color: 0.19 lux at 50 IRE, F1.7
B/W: 0.04 lux at 50 IRE, F1.7, 0 lux with IR illumination on
Shutter speed 1/62500 s to 2 s
Camera angle
adjustment
Pan ±180°, tilt -40 to +75°, rotation ±95°
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
Motion JPEG
Resolution 3840x2160 to 160x90
Frame rate 25/30 fps with power line frequency 50/60 Hz
Video streaming Multiple, individually configurable streams in H.264 and Motion
JPEG
Axis Zipstream technology in H.264
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264
Multi-view
streaming
8 individually cropped out view areas.
Pan/Tilt/Zoom Digital PTZ, Preset positions
Image settings Compression, Color, Brightness, Sharpness, Contrast, Local
contrast, White balance, Exposure control (including automatic
gain control), Exposure zones, Fine tuning of behavior at different
light levels, Forensic WDR: up to 120 dB depending on scene,
Text and image overlay, Mirroring of images, Privacy masks
Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Audio
Audio
input/output
Two-way audio connectivity via AXIS T61 Audio and I/O
Interfaces with portcast technology
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1X (EAP-TLS)
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware
Supported
protocols
IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa
, SSL/TLSa
, QoS Layer
3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP
v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP,
IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SIP, SOCKS, SSH,
LLDP, MQTT v3.1.1, Syslog
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
One-Click Cloud Connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
Event triggers Analytics, edge storage events, virtual inputs through API
Event actions Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
Pre- and post-alarm video or image buffering for recording or upload
Notification: email, HTTP, HTTPS, TCP and SNMP trap
Overlay text, IR illumination on/off
Data streaming Event data Built-in
installation aids
Remote zoom, remote focus, pixel counter
Applications Included
AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
AXIS Video Motion Detection, active tampering alarm
Supported
AXIS Digital Autotracking, AXIS Demographic Identifier
Support for additional applications if the device is used with
compatible accessories. For more information, contact your Axis partner.
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing IP52-rated, IK08 impact-resistant, polycarbonate casing with
hard-coated dome and dehumidifying membrane
Encapsulated electronics and captive screws
Color: white NCS S 1002-B
For repainting instructions of casing and impact on warranty,
contact your Axis partner.
Mounting Mounting bracket with holes for junction boxes (double-gang,
single-gang, and 4” octagon) and for wall or ceiling mount
?”-20 UNC tripod screw thread
Sustainability PVC free
Memory 1 GB RAM, 512 MB Flash
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3,
max 11.5 W, typical 8.6 W
Connectors RJ45 10BASE-T/100BASE-TX PoE
Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces
with portcast technology
IR illumination OptimizedIR with power-efficient, long-life 850 nm IR LEDs.
Range of reach 30 m (100 ft) or more depending on the scene
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
0 °C to 50 °C (32 °F to 122 °F)
Humidity 10 to 85% RH (non-condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Approvals EMC
EN 55032 Class B, EN 50121-4, IEC 62236-4,
EN 55024, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A and B, ICES-003 Class B,
VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B,
KN35
Safety
IEC/EN/UL 60950-1, IEC/EN 62471, IS 13252
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14
IEC 60068-2-6 (vibration), IEC 60068-2-27 (shock),
IEC 60068–2–30, IEC 60068-2-78, IEC/EN 60529 IP52,
IEC/EN 62262 IK08
Network
NIST SP500-267
Dimensions Height: 101 mm (4 in)
? 149 mm (5 7/8 in)
Weight 550 g (1.2 lb)
Included
accessories
Installation guide, Windows decoder 1-user license, mounting
bracket, cable gasket, Resistorx®T20 L-key, drill template,
connector guard
Optional
accessories
AXIS T6101 Audio and I/O Interface
AXIS T6112 Audio and I/O Interface
AXIS ACI Conduit Bracket B
AXIS ACI Conduit Adapters
AXIS T94K01L Recessed Mount Kit
AXIS T94S01L Recessed Mount Kit
AXIS T94K01D Pendant Kit
AXIS Skin Cover C, Black
AXIS Mounts
AXIS P32–V Smoked Dome A
