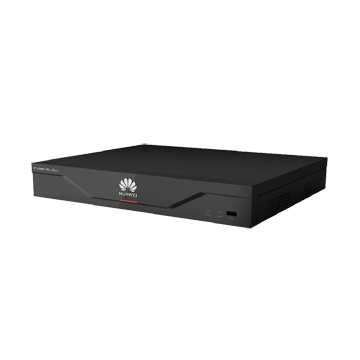

NVR800-A01 8-channel 1-disk network video recorder
Preview 1/4/6/8/9/10/12/13/14/16 panes
Disks 2 disks
Decoding 8MP (4K): 2-channel @ 30 fps 5MP: 4-channel @ 20 fps 4MP: 4-channel @ 30 fps 2MP (1080p): 8-channel @ 30 fps If the IVS platform is used with Huawei SDCs, when the target recognition function is enabled, the decoding performance deteriorates by 50%.
Playback/Download 16 channels, 128 Mbit/s playback
Video forwarding 128 Mbit/s forwarding
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms.

 Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Video input 16 channels, 168 Mbit/s access
Recording playback 16-channel simultaneous playback Simultaneous playback Controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)Video input 16 channels, 168 Mbit/s access
Video forwarding 128 Mbit/s forwarding
Playback/Download 16 channels, 128 Mbit/s playback
HDMI One HDMI 1.4 Resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160
VGA One VGA port Resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
Decoding 8MP (4K): 2-channel @ 30 fps 5MP: 4-channel @ 20 fps 4MP: 4-channel @ 30 fps 2MP (1080p): 8-channel @ 30 fps If the IVS platform is used with Huawei SDCs, when the target recognition function is enabled, the decoding performance deteriorates by 50%.
Preview 1/4/6/8/9/10/12/13/14/16 panes
Memory 8 GB DDR4
Processor 32-bit multi-core high-performance processor
Disks 2 disks
Disk port SATA2.0
Disk type 8 TB per port
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms.
Recording playback 16-channel simultaneous playback Simultaneous playback Controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Search mode By time, recording type, or AI event
Download mode Batch download and segment-based download
Network protocol TCP (reliable transmission), UDP (transmission protocol), RTP (data protocol), RTSP (real-time transmission protocol), HTTP (hypertext transmission), DNS (domain name resolution service), SNMP (simple network management), NTP (network time calibration), SMTP (email service), and DHCP (automatic IP address obtaining)
Web access Compatible with Internet Explorer 9, 10, and 11
P2P HUAWEI CLOUD service Access to HUAWEI CLOUD services and remote access through mobile apps
Device access Huawei SDK and ONVIF
Audio format G.711a\G.711u
Video format H.264\H.265
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Target reference libraries 16
Total target library capacity 15,000
Structured data storage Structured vehicle data storage
Log download Operation logs, system logs, alarm logs, parameter setting logs, recording logs, SDC SDK logs, and public cloud logs; support for intelligent log check and log storage
Management mode Web and LDU
Audio output 1 channel, RCA port
Audio input 1 channel, RCA port
USB port 3 x USB port (1 front USB 2.0 port, 1 rear USB 2.0 port, and 1 rear USB 3.0 port)
Network port 1 x 100/1000 Mbit/s Ethernet port 16 x PoE ports (10/100 Mbit/s Ethernet port)
PoE 16 x 10/100 Mbit/s Ethernet ports
Standard IEEE802.3af/at
Output power ≤ 120 W
Operating temperature 0°C to 45°C
Operating humidity 20% to 90%
Power consumption (without hard disk) ≤ 13 W
Weight (without hard disk) 2.3 kg
Chassis 1 U
Dimensions 54 mm x 378 mm x 302 mm (H x W x D)
Power supply Input: 100–240 V AC/50~60Hz; Output: 48V DC/3.75A
Outside China RoHS and WEEE
China CCC, CQC, and Identification and Classification Report for Air Transport of Goods
