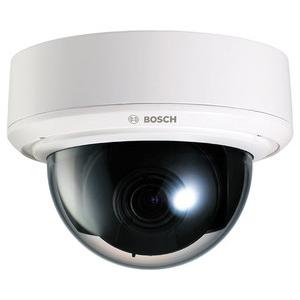

VDN-244V03-1C 博世BOSCH 720線 日夜轉(zhuǎn)換感紅外半球攝像機(jī)
CTN Class: VDN-244V03系列
Subtypes
VDN-244V03-1
PAL
VDN-244V03-2
NTSC
VDN-244V03-1H
PAL, Heater
VDN-244V03-2H
NTSC, Heater
VDN-244V03-1C
PAL, Chinese plug
Basic Features
Maximum Resolution
720TVL (960H)
Image sensor type
960H 1/3" CCD
Day/night
Day/Night
Indoor / outdoor
Outdoor
IR Sensitive
√
Wide Dynamic Range (WDR)
54dB
Advanced Features
Privacy masking
√
Alarm triggering
Tamper detection
√
Video Motion Detection
√
Sensitivity
Min. illumination day mode (color)
0.15 lux
Min. Illumination night mode (B/W)
0.05 lux
Night vision
X
Max. range at night
X
Lens
Focal length from
2.8 mm / 1.10 Inch
Focal length till
10.5 mm / 4.13 Inch
Min. view angle (H)
27.4°
Max. view angle (H)
99.5°
PTZ zoom optical
X
Zoom digital
X
Tilt angle
X
Connections
Alarm input / output
√
Housing
Weather rating
IP66
Vandal resistant
IK08
Operating temperature
-30 to +50 C (-22 to +122 F)
