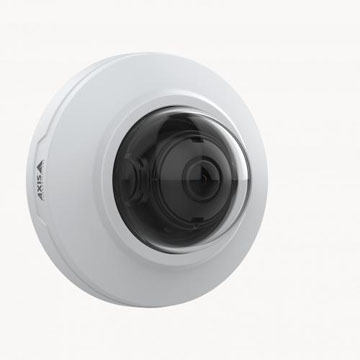

AXIS M3086-V 02374-001 4M安訊士網絡半球攝像機
Lens
Property description Property value
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 93 °
詳情
AXIS M3086-V 02374-001 4M安訊士網絡半球攝像機
Technical specifications
DATASHEET (PDF)
Models: AXIS M3086-V
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 93 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
Network
Property description Property value
PoE Class 2
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature 0 to 45 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP42
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Video Motion Detection
Supported
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS People Counter
Insight beyond people counting
AXIS Queue Monitor
Don’t keep them waiting
