Brand:Honeywell
Model:HN-SD7422S

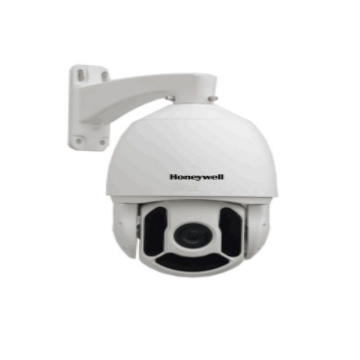

HN-SD7422S Honeywell PTZ Camera
The image sensor 1/2.8 of an inch CMOS
Minimum illumination Color: 0.002 Lux @ (F1.6, AGC ON)
Black and white: 0.0001 Lux @ (F1.6, AGC ON)
Total pixel sensor About 2.56 million pixels
The level of resolution P 1000 TVL
Maximum image size 1920 x 1080
Digital noise reduction 3 d noise reduction
Focused mode Automatic/manual/focus at a time
The exposure mode Ae/shutter priority/manual exposure
Day and night mode Automatic/color/black and white
Electronic shutter 1/1 ~ 1/10000 of a second
The white balance support
Backlight compensation Main Profile/BaseLine Profile support
Exposure compensation support
gain Adjustable level 16;
Wide dynamic 95 db
Through the fog support
Slow shutter 25/1-10000/1
The mirror support
The flashing support
Bad point compensation support
Image quality adjust support
Camera initialization support
The focal length F = 4.7 ~ 103.0 mm, 22 x optical zoom
The aperture F1.6 ~ F3.5
Horizontal viewing Angle 58.3-3.2 degrees (telescopic - wide)
Change of times About 3 s (wide Angle ~ telescopic, optical zoom)
Close-up of 100 mm to 1500 mm
Image set Can be adjusted by the client or Internet explorer
Intelligent alarm The motion detecting and keep out alarm
Day and night conversion mode ICR infrared filter chip
function Fill light Angle
According to the focal length variable Yuntai level
0 ° ~ 360 ° continuous rotation
Yuntai vertical scope - 5 ~ 90 °
Yuntai keying speed Level: 0.01 ~ 200 ° / S vertical: 0.01 ~ 120 ° / S
Preset point 255
Automatic cruise Article 4 each up to 10 preset, residence time is adjustable)
About the scanning Article 1.
horizontal Article 1.
On the electricity
Guards around bit/scan/level 360 ° continuous scanning/cruise scan
The free action
Guards around bit/scan/level 360 ° continuous scanning/cruise scan
The guards function 1
Power off memory support
The main stream resolution and frame rate
50 hz: 25 FPS (1920 x 1080); 25 FPS (1280 x 720) 60 hz: 30 FPS (1920 x 1080); 30 FPS (1280 x 720);
Video compression H. 265 / h. 264 / MJPEG;
Audio compression G. 711
Mirror image Horizontal/vertical/horizontal + vertical/off
Network protocol IPV6 and IPV4, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, OSD
Support multiple lines Time to show
Support for week, date, time
Application programming interface
Support software integration of open API, support the standard protocol (Onvif, CGI, support the SDK and the third party management platform access
The browser
Support IE7 above (contain 7), Google, firefox, apple and so on the IE browser
At the same time preview users
Up to six road The network interface
Built-in RJ45 front-end ports, support 10 m / 100 m network data
audio 1 road input, output 1 road
Call the police 1 road input, output 1 road
Audio input Audio input (LINE input), audio peak: 2 ~ 2.4 V [p - p], output impedance: 1 k Ω plus or minus 10%
Audio output The linear level, impedance: 600 Ω
General specification The power supply
DC12V plus or minus 10% (including infrared control circuit)
The work environment - 20 ℃ ~ + 60 ℃
Protection grade
Outburst prevention function, built-in 8000 v lightning protection, the 4000 v power supply anti surge line (ground)
installation
To select multiple installation methods selected according to the application environment
Product size Φ 306 mm x 356 mm
The weight of the 6.5 kg)
Waterproof level IP66)
