Brand:Pelco
Model:ES5230-12N
(1) - Esprit HD IP Series Positioning System
(1) - EPP Pedestal Adapter
(1) - Tube of Loctite thread compound
(3) - 10-32 x 1/2-inch flat head screws
(3) - 1/4-20 nuts and washers
*Power Supply Sold Separately*

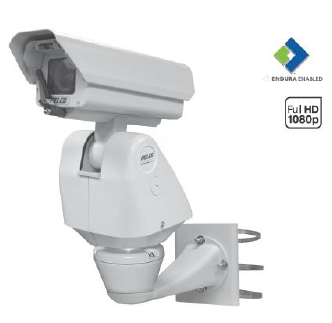

Pelco ES5230-12N Esprit HD 30x IP PTZ Positioning System, 24VAC
30x Optical Zoom, 2Mp HD Day/Night Camera, Integrated Optics Package (IOP), Integrated Window Wiper, Pedestal Adapter, 24VAC, NTSC
Pelco takes its industry-leading Esprit Series positioning system into the world of high definition. Esprit HD delivers crystal-clear, live streaming images over the Internet using a standard Web browser (Microsoft Internet Explorer or Mozilla Firefox). With six times the resolution of standard definition positioning systems, Esprit HD is an ideal solution to view details such as faces, license plates, tattoos, or other specific features.
Esprit HD supports High-Profile H.264 compression, a vast improvement in quality over MPEG-4 and 20 times more efficient than MJPEG. The positioning system features open architecture connectivity for third-party software recording solutions allowing integration into virtually any IP-based HD system. It is also compatible with Digital Sentry video management systems. As with all Pelco IP camera solutions, Esprit HD is Endura Enabled to record, manage, configure, and view multiple live streams. When connected to an Endura HD network-based video security system, the positioning system has access to EnduraStor and EnduraView for optimized image quality and bandwidth efficiency.
Product Features
Up to 1920 x 1080 Resolution
16:9 Aspect Ratio; 1080p at 30 Images per Second (ips)
2.0 Megapixel (MPx)
30x Optical Zoom, 12x Digital Zoom
Wide Dynamic Range (WDR)
Ability to Control and Monitor Video Over IPv4 and IPv6 Networks
Built-in Analytics Including AutoTracker and Adaptive Motion Detection
2 Simultaneous Video Streams: Dual H.264 or H.264 and Scale-able MJPEG
360 degree Continuous Pan Rotation at 100 degree per Second
Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, and More
Electronic Image Stabilization (EIS)
Pan/Tilt and Enclosure with Integrated Optics Package (IOP)
16 Preset Tours, 256 Presets, 32 Window Blanks
Integrated Window Wiper with Configurable Delay and Shut-Off
Open IP Standards
ONVIF Profile S Conformance
Applications
Traffic Monitoring
City Center Surveillance
Airports & Marine Environments
Heavy Commercial & Industrial
Accessories
Pelco PM2000 Universal Pedestal Mount
Pelco ES-REPLBLADE-2 Esprit Wiper Blade Replacements, 2 Pieces
Pelco ES-REPLBLADE-10 Esprit Wiper Blade Replacements, 10 Pieces
Pelco PM2010 Heavy-Duty Ceiling/Pendant Mount up to 125lb 10-inch High
Pelco WCS1-4 Outdoor Camera Power Supply, 4 Amp 1 Output
| Product SKU | ES5230-12N |
|---|---|
| Brand | Pelco |
| Condition | New |
| NDAA Compliance | Yes |
| Technology | Digital - IP |
| PTZ Class | PTZ Positioning System |
| Housing Options | Wiper System |
| Housing Color | Gray |
| Mounting Position | Pedestal |
| PoE Class | Non-PoE |
| Home Control | Wi-Fi |
| Image Sensor | Day/Night (NO IR) |
| Alarm I/O | 2/2 |
| Optical Format | 1/2.8" |
| Image Sensor | CMOS |
| Resolution | 2MP: 1920 x 1080 |
| Optical Zoom | 30X |
| Compression | H.264, MJPEG |
| Environment | Outdoor (IP65+), Low Temp (<14°F) |
| Video Connection(s) | RJ-45/12 |
| Power | 24V AC |
| Special Features | Content Analytics, Motion Tracking, ONVIF Conformant, Privacy Masks, Video Motion Detection, Wide Dynamic Range |
