Brand:AXIS
Model:AXIS P3807-PVE 01048-001
Lens Focal length 3.2 mm
Horizontal field of view 180 °
Vertical field of view 90 °

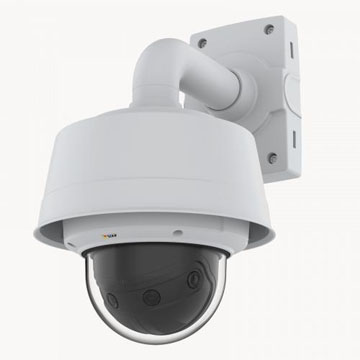

AXIS P3807-PVE Network Camera
Panoramic camera for seamless, 180° coverage
Seamlessly stitched images
180° horizontal and 90° vertical coverage
8 MP resolution at full frame rate
Axis Lightfinder and Forensic WDR
Axis Zipstream for reduced bandwidth and storage needs
Technical specifications
Models: AXIS P3807-PVE
Camera
Image sensor CMOS
Image sensor size 1/2.9
Sensor size in megapixel 8.4
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.17 lux
Min illumination/ light sensitivity (B/W) 0.05 lux
Video
Max video resolution 4320x1920
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens Focal length 3.2 mm
Horizontal field of view 180 °
Vertical field of view 90 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware Yes
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P3807-PVE AR, AU, BR, CN, EU, JP, KR, UK 01048-001
AXIS P3807-PVE IN 01048-113
AXIS P3807-PVE US 01048-004
Accessories
