Brand:AXIS
Model:AXIS Q6315-LE
Lens Focal length 6.91mm-214.64mm
Horizontal field of view 60.6 - 2.0 °
Vertical field of view 36.5 - 1.1 °

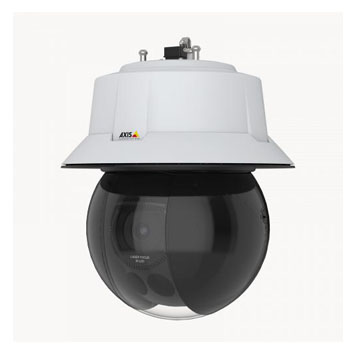

AXIS Q6315-LE PTZ Network Camera
High-end outdoor-ready HDTV 1080p PTZ camera with quick-zoom and laser focus
1/2" sensor with 31x optical zoom
IR illumination, D/N functionality
Autotracking 2, orientation aid and AXIS Object Analytics
Laser focus for precise focus with Quick-zoom <1sec
TPM, FIPS 140-2 level 2 certified
Ideal for city surveillance, AXIS Q6315-LE offers a ?” sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
AXIS Q6315-LE features very light-sensitive ?” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus– every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS Q6315-LE 50 Hz / AXIS Q6315-LE 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/1.7
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) –
General
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -50 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Analytics
Autotracking version Autotracking 2
Orientation aid –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 6.91mm - 214.64 mm
Horizontal field of view 60.6 - 2.0 °
Vertical field of view 36.5 - 1.1 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range +20 to -90
Guard tour preset position tour
Optical zoom 31
Digital zoom 12
Compression
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class 6
Security
Signed firmware Yes
Secure boot Yes
TPM Yes
