Brand:Sony
Model:SNC-WR632

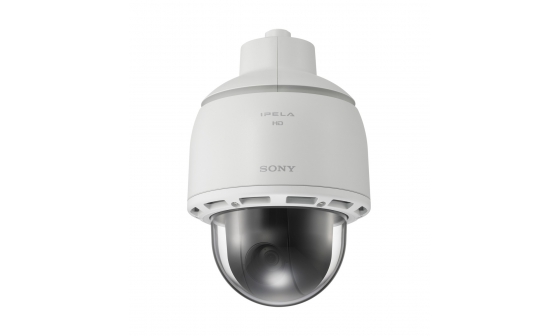

SNC-WR632 Sony 1080p/60 fps Rapid Dome Camera
Specifications
Camera
Image Sensor1/2.8-type progressive scan Exmor CMOS sensor
Number of Effective PixelsApprox. 2.38 Megapixels
Signal SystemNTSC/PAL (switchable)
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 1.4 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.15 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Minimum Illumination (30 IRE)Color: 1.0 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
B/W: 0.1 lx (F1.6, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps)
Dynamic RangeEquivalent to 130 dB with View-DR technology
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto/Manual (-3 dB to +28 dB)
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlFull auto, Shutter priority, Iris priority, Manual
White BalanceATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual
LensAuto-focus zoom lens
Powered ZoomYes
Easy ZoomNo
Zoom RatioOptical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered FocusYes
Auto FocusYes
Easy Focus for SetupNo
Horizontal Viewing Angle63.7° to 2.3°
Vertical Viewing Angle38.5° to 1.3°
Focal Lengthf = 4.3 mm to 129.0 mm
F-NumberF1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance300 mm
Pan/Tilt Angle (powered)360° endless rotation/220°
Pan Speed700°/s (max.) *1
Tilt Speed700°/s (max.)*1
Number of Preset Positions256
Number of Tour Programs5
IR IlluminatorNo
IR Working DistanceNo
White-light LED IlluminatorNo
LED Working DistanceNo
Camera Features
Day/NightTrue D/N
Day/Night linked with Easy FocusNo
e-FlipNo
Wide-DView-DR
Tone CorrectionVisibility Enhancer (VE)
Defog Image ProcessingYes
Noise ReductionXDNR
Image StabilizerYes
Picture ModeYes
Privacy Masking (number)12
Privacy Masking (shape)Quadrangle formed by any four corner points
Privacy Masking (color/effect)Opaque: 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Edge StorageYes
Image MemoryNo
Memory Size for Image MemoryNo
Memory Size for Pre/Post BufferNo
Compatibility with Cloud ServiceNo
Voice AlertYes
Vandal ResistantIK10
Ingress ProtectionIP66
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai
Smartphone viewerYes
Video
Resolution1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184, (H.264, JPEG)
Compression FormatH.264 (High/Main/Baseline Profile), JPEG
Maximum Frame RateH.264: 60 fps (1920 x 1080)
JPEG: 60 fps (1280 x 720)
Bitrate Compression ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 32 Mbps
Image CroppingNo
Solid PTZNo
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityTriple streaming
Number of Clients20
Letter BoxNo
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA Advanced
Intelligent Motion DetectionYes
Face DetectionYes
Tamper AlarmYes
Advanced Audio DetectionNo
Scene AnalyticsPassing, Intrusion, Left Object Detection, Removed Object Detection
Auto TrackingNo
Audio
Compression FormatG.711/G.726/AAC (16 kHz, 48 kHz)
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)
ProcessorIntel Corei7 2.8 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0, Ver. 10.0, Ver. 11.0
Firefox Ver. 19.02 (plug-in free viewer only)
Safari Ver. 5.1 (plug-in free viewer only)
Google Chrome Ver. 25 (plug-in free viewer only)
Network
ProtocolsIPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, FTP (client only), SNMP (v1, v2c, v3), SSL *SSM (Source Specific Multicast) is supported.
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S, Profile T
Wireless NetworkNo
Wi-Fi CertifiedNo
Wi-Fi Protected Setup (WPS)No
AuthenticationIEEE 802.1X
Interface
Analog Video InputNo
Analog Video OutputBNC x1, 1.0 Vp-p, 75 Ω, unbalance, sync negative
Analog Monitor Output for SetupNo
Analog Video Output/SLOC PortNo
SLOC PortNo
Composite Buffered Through OutNo
Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power
Line InputMini jack (monaural)
Line OutputMini jack (monaural), Maximum output level: 1 Vrms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x4, make contact, break contact
Alarm Outputx2, 24 V AC/DC, 1 A (mechanical relay outputs electrically isolated from the camera)
Serial InterfaceRS-422/RS-485 (PELCO D protocol)
Card SlotsSD Card x 1
Confirmed SD Card Type4/8/16/32 GB SDH (no support for SDXC)
USB SlotsNo
General
Power RequirementsHPoE+ system*2, AC 24 V
Power Consumption80.0 W max.
Operating Temperature-40°C to +50°C (AC 24V)
-5°C to +50°C (HPoE+)*2
-40°F to +122°F (AC 24V)
23°F to 122°F (HPoE+)*2
Cold Start Temperature-40°C to +50°C (AC 24V)
0°C to +50°C (HPoE+)*2
-40°F to +122°F (AC 24V)
32°F to 122°F (HPoE+)*2
Storage Temperature-20℃ to +60℃
-4°F to +140°F
Operating Humidity20% to 80%
Storage Humidity20% to 95%
Built-in HeaterYes
Dimensions (W x H x D)*3φ222.0 x 324.1 mm
φ8 3/4 inches x 12 7/8 inches
MassApprox. 4.1kg
9 lb 0.6 oz
External MaterialDome cover: PC
Top sunshade: PC
Coupling: ADC12
Top cabinet: ADC12
Sun shade: PC
Dome flange: ADC12
External ColorTop sunshade: 6.4GY 8.0/0.3
Coupling: 3.6GY 8.4/0.3
Top cabinet: 3.6GY 8.4/0.3
Sun shade: 6.4GY 8.0/0.3
Dome flange: 3.6GY 8.4/0.3
Safety RegulationsJATE Technical Standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
KCC
EMC-TR
Supplied AccessoriesCD-ROM (supplied programs) (1)
Installation Manual (1)
Dome cover (1)
Top sunshade (1)
Coupling (1)
Wire-fixing belt (1)
Wire bracket (1)
Bolts (2)
Power supply connector 3-pin (1)
I/O harness 14-pin (1)
Harness band (1)
Band mount (1)
Connection cord (with BNC) (1)
Optional AccessoriesYT-LDR632S Dome Cover Smoked)
Notes
*1Available when preset mode is On.
*2Power supply is generated from PowerDsine® 9501G by using 4 wires.
*3The values for dimensions are approximate.
