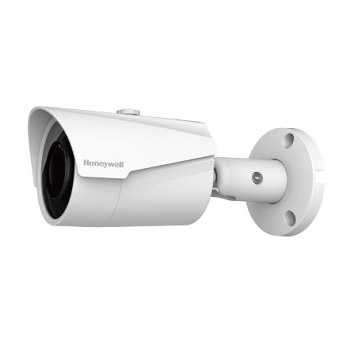

HBW4PER1 Honeywell Network WDR 4 MP IR Bullet Camera

OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive scan
IMAGE SENSOR 1/3" 4 MP CMOS
NUMBER OF PIXELS (H × V) 2688 × 1520
MINIMUM ILLUMINATION
0.08 lux color @ F2.0 (Color, 1/3s, 30 IRE)
0 lux B/W with IR LEDs on @ F2.0
S/N RATIO > 45 dB
ELECTRONIC SHUTTER SPEED 1/3(4) – 1/100,000 s
IR DISTANCE Up to 98 ft (30 m), depending on scene reflectance
SMART IR Auto/Manual
DAY/NIGHT Auto (ICR)/Color/BW
BACKLIGHT COMPENSATION BLC/HLC/WDR (120 dB)
WHITE BALANCE
Auto/Natural/Street Lamp/Outdoor/Manual/
Customized Region
GAIN CONTROL 0~100
WIDE DYNAMIC RANGE 120 dB
NOISE REDUCTION 3D DNR
PRIVACY MASKING Up to 4 configurable zones
MOTION DETECTION Up to 4 configurable zones
REGION OF INTEREST Up to 4 configurable zones
DIGITAL ZOOM 16x
LENS 3.6 mm, fixed, F2.0
ANGLE OF VIEW 87° (H), 56° (V)
VIDEO
VIDEO COMPRESSION H.265/H.264H/Smart Codec/MJPEG (Sub Stream)
RESOLUTION
4 MP (2688×1520), QHD (2560×1440),
3 MP (2304×1296), 1080p (1920×1080),
SXGA (1280×1024), 1.3 MP (1280×960),
720p (1280×720), D1 (704×480/576),
VGA (640×480), CIF (352×240/288)
FRAME RATE
4 MP at 1 – 20fps, 3 MP at 1 – 25/30fps
D1/CIF at 1 – 25/30fps
BIT RATE CONTROL CBR/VBR
BIT RATE
H.265: 12K – 8448 Kbps
H.264: 32K – 10240 Kbps
NETWORK
ETHERNET RJ-45 (10/100BASE-T)
SUPPORTED WEB BROWSERS Internet Explorer (11.0+)
SUPPORTED OS
Windows® 7 32-bit/64-bit;
Windows® 10 32-bit/64-bit

NETWORK (CONT'D)
PROTOCOLS*
HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP;
SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS
INTEROPERABILITY ONVIF Profile S/Q
MAXIMUM USER ACCESS 20 users
SECURITY
User account and password protection HTTPS, IP Filter,
Digest authentication, User access log, TLS1.2 only,
AES-128/256, SSH/Telnet closed, sFTP by default,
PCIDSS compliance
EVENT
Network disconnection, IP address conflict, illegal
access, video tampering, motion detection
EVENT NOTIFICATION Record (NAS and FTP), email, snapshot
ELECTRICAL
POWER SUPPLY PoE (802.3af) Class 0, 12 VDC
POWER CONSUMPTION 5.7 W max. (IR LEDs on)
MECHANICAL
DIMENSIONS 6.49" × 2.79" (164.8 mm × 71.0 mm)
PRODUCT WEIGHT 0.84 lb (0.38 kg)
PACKAGE WEIGHT 0.97 lb (0.44 kg)
CONSTRUCTION Die-cast aluminum housing with powder coat
CONSTRUCTION COLOR RAL 9003 (White)
ENVIRONMENTAL
OPERATING TEMPERATURE –22°F to 131°F (–30°C to 55°C)
STORAGE TEMPERATURE –22°F to 131°F (–30°C to 55°C)
RELATIVE HUMIDITY Less than 95%, non-condensing
INGRESS PROTECTION IP66
REGULATORY
EMISSIONS FCC Part 15B, EN 55032
IMMUNITY EN 50130-4
SAFETY
EU: EN 60950-1
North America UL listed to UL/CSA 60950-1
ROHS EN 50581

SYSTEM COMPATIBILITY
HEN*4
8/16/32/64-channel Performance Series 4K NVRs (H.264 and H.265)
HEN*2
4/8/16-channel Performance Series NVRs (H.264)

MOUNTS AND ACCESSORIES
HQA-PM2**
Pole Mount Bracket
HB34S2-CM**
Corner Mount Bracket
HBS2-BB
Junction Box
HEJB
Junction Box

HBW4PER1
Network WDR 4 MP IR Bullet Camera, 1/3" CMOS, 3.6 mm Fixed, 18 IR LEDs, PoE, IP66, H.265/H.264/Smart Codec
