Brand:AXIS
Model:M3125-LVE 2MP
M3126-LVE 4MP
M3128-LVE 8MP
Lens:2.9 mm
Weight:390g

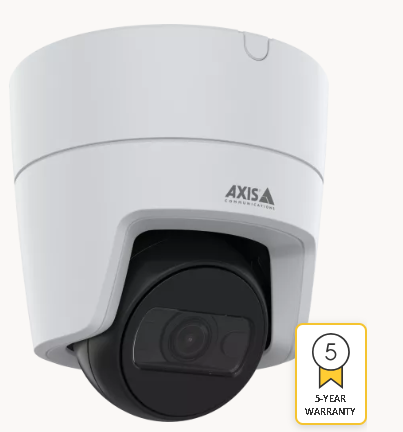

AXIS M3125-LVE Dome Camera
AXIS M3126-LVE Dome Camera
AXIS M3128-LVE Dome Camera
AI-powered 2 MP turret style camera
Great image quality in 2 MP
WDR, Lightfinder, and OptimizedIR
Available in black or white
AI-based video analytics
Built-in cybersecurity with Axis Edge Vault
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M3125-LVE White IN 02916-113
AXIS M3125-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02916-001
AXIS M3125-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02917-001
AXIS M3125-LVE Black IN 02917-113
AXIS M3126-LVE White IN 02918-113
AXIS M3126-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02918-001
AXIS M3126-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02919-001
AXIS M3126-LVE Black IN 02919-113
AXIS M3128-LVE White IN 02920-113
AXIS M3128-LVE White AR, AU, BR, CN, EU, JP, KR, UK, US 02920-001
AXIS M3128-LVE Black IN 02921-113
AXIS M3128-LVE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02921-001
Technical specifications
DATASHEET (PDF)
Variants: AXIS M3125-LVE Black / AXIS M3125-LVE White
Camera
Property description Property value
Lightfinder Lightfinder
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Image sensor CMOS
Image sensor size 1/2.8"
Wide dynamic range WDR
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.9 mm
Horizontal field of view 110 °
Vertical field of view 60 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Audio
Property description Property value
Audio Support -
Built-in microphone -
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed OS Yes
Secure boot Yes
Secure keystore Secure Element (CC EAL6+, FIPS 140-3 Level 3)
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66
Designed for repaint Yes
Sustainability PVC free
* Some technical specifications may vary depending on which hardware option you choose.
Accessories
Make the most out of your solution. Use the filter to find compatible products. Start by selecting your product variant (compatibility may rely on it).
Select a product variant:
Filter by:
Recommended
Included
All
Type:
All
Cables & connectors
Edge storage
Housings & cabinets
I/O devices
Media converters
Mounts
Power
Switches
Tools & extras
VIEW LESS
Cables & connectors
AXIS Long Range PoE Extender Kit
Robust solution for covering long distances
Recommended for this product
AXIS T8129 PoE Extender
The smart solution for covering distances
AXIS T8129-E Outdoor PoE Extender
Robust, outdoor-ready solution for covering distances
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC? card
AXIS Surveillance Card 128 GB
High endurance microSDXC? card
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
AXIS Surveillance Card 512 GB
High endurance microSDXCTM card
Housings & cabinets
AXIS TM3824-E Weathershield
Weathershield for AXIS M31 Series
I/O devices
AXIS T6101 Mk II Audio I/O Interface
Seamlessly add audio and I/O to your Axis cameras
Recommended for this product
AXIS T6112 Mk II Audio I/O Interface
Seamlessly add a microphone and I/O to your Axis cameras
Recommended for this product
Media converters
AXIS T8640 PoE+ over Coax Adapter Kit
Cost-efficient migration to network video for smaller installations
Recommended for this product
AXIS T8645 PoE+ over Coax Compact Kit
Compact, cost-efficient single-channel migration to IP
Recommended for this product
Mounts
AXIS T91A04 Camera Holder ?” NPS
For cameras with standard UNC thread
Recommended for this product
AXIS T91A05 Camera Holder 1.5" NPS
For cameras with standard UNC thread
Recommended for this product
AXIS T91A11 Stand White
For Axis M-line network cameras
Recommended for this product
AXIS T91A23 Tile Grid Ceiling Mount
Flexible mount for drop-ceiling tile grids
Recommended for this product
AXIS T91A33 Lighting Track Mount
Flexible mount for lighting tracks
Recommended for this product
AXIS T91B47 Pole Mount
For different pole diameters
Requires additional accessory
Recommended for this product
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
Recommended for this product
AXIS T91B53 Telescopic Ceiling Mount
For affordable and flexible ceiling installations
Requires additional accessory
Recommended for this product
AXIS T94B01P Conduit Back Box
For ?″ conduits and M20 pipes with UNC thread
Recommended for this product
AXIS T94B02D Pendant Kit
Pendant kit for Axis mounting products
Recommended for this product
AXIS T94B02M J-Box/Gang Box Plate
Mounting of cameras on junction boxes
Recommended for this product
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
Requires additional accessory
Recommended for this product
AXIS TM3101 Pendant Wall Mount
Discreet design for indoor installations
Recommended for this product
AXIS TM3212 Recessed Mount
For discreet video surveillance
Recommended for this product
AXIS TM3213-E Recessed Mount
For discreet video surveillance
Recommended for this product
Power
AXIS 30 W Outdoor Midspan
For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)
Recommended for this product
AXIS T8120 Midspan 15 W 1-port
Power and data to your network device
Recommended for this product
AXIS TU8010 2-port PoE Extender
2-port indoor PoE extender
Recommended for this product
AXIS TU8011 4-port PoE Extender
4-port indoor PoE extender
Recommended for this product
Switches
D8004 unmanaged PoE switch
Your perfect entry-level PoE switch
Recommended for this product
AXIS D8248 Managed PoE++ Switch
48 port switch for efficient network management
Recommended for this product
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
Recommended for this product
AXIS T8504-R Industrial PoE Switch
Managed, industrial PoE switch
Recommended for this product
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
Recommended for this product
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
Recommended for this product
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Recommended for this product
Tools & extras
AXIS Safety Wire 3 m
Versatile safety wire
Recommended for this product
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
