EXP2230-67 Pelco 2MP x30 230VAC Explosionproof PTZ Camera

ExSite® Enhanced 2
Explosionproof PTZ Camera System
Product Features
l Up to 1920 x 1080p Resolution Wide Dynamic
Range (WDR)
l Multi-Stream H.264 and H.265 IP Video with
Smart Compression
l Rated to Operate from -40 °C to +60 °C (-40 °F
to 140 °F), with ambient convection
l AISI 316L Stainless Steel Electro Polished
Construction
l Reliable Pan/Tilt
l Standard IP Ethernet Connection
l Full Suite of Built-In Analytics
l Electronic Image Stabilization
l Onvif Profiles S, G, and T Conformant
l Certifications: FCC Part 15, CE, cULus, ICES-
003, RCM, BIS
l Hazardous Location Certifications: IECEx,
ATEX, INMETRO, EAC Ex, cULus, UKEx, KCs
Lens F1.6, 4.3-129 mm (30x zoom) remote focus and zoom
Horizontal Angle of View (16:9) 3.1°-64°
Vertical Angle of View (16:9) 1.7°-38°
Light Sensitivity Color (33 ms); 0.1 lux
Mono (33 ms); 0.03 lux
Iris Control P-Iris, Automatic, Open, Closed
Shutter Range Automatic, Manual (1/1 to 1/30,000 sec)
Day/Night Capabilities Mechanical IR cut filter. Automatic, Manual
Flicker Correction 60 Hz, 50 Hz
White Balance Automatic, Manual
Backlight Compensation On/Off
Video
Item Description
Frame Rate 60 fps
Video Encoding H.264, H.265 Pelco Smart Compression, Motion JPEG
Video Streams Multi-stream H.264, Multi-stream H.265, Motion JPEG
Software Features
Item Description
Smart Compression
Technology
Yes, lowers bandwidth and storage requirements by up to 70%.
On Screen Displays Yes
Privacy Zones 3D, up to 64 zones
Presets 500 named presets
Tours 10 named tours
Digital Defog Adjustable/Off
Environmental
Item Description
Operating Temperature - 40 °C to +55 °C (-40 °F to 131 °F), in enclosed space - 40 °C to +60 °C (-40
°F to 140 °F), with ambient convection
Storage Temperature -40 °C to +55 °C (-40 °F to 131 °F)
Humidity 10% - 95% non-condensing
Cold Start Up to 1 hour startup delay at temperature lower than -10 °C (14 °F)
Wind Resistance Pan and tilt operational at a maximum of 210 km/h wind (130.5 mph)
System Model Numbers
System
Resolution Model # Description
2 MP 30X EXP2230-62 ExSite® Enhanced 2 PTZ, 2 MP x 30, 24 VAC
2 MP 30X EXP2230-65 ExSite® Enhanced 2 PTZ, 2 MP x 30,120 VAC
2 MP 30X EXP2230-67 ExSite® Enhanced 2 PTZ, 2 MP x 30, 230 VAC
2 MP 30X EXP2230-62-G ExSite® Enhanced 2 PTZ, 2 MP x 30, T6, 24 VAC, with ONVIF G
remote storage
2 MP 30X EXP2230-65-G ExSite® Enhanced 2 PTZ, 2 MP x 30, T6, 120 VAC, with ONVIF G
remote storage
2 MP 30X EXP2230-67-G ExSite® Enhanced 2 PTZ, 2 MP x 30, T6, 230 VAC, with ONVIF G
remote storage
Mounting Accessories
MPXWBA Wall bracket for use with EXP2230 cameras. AISI316L stainless steel.
MPXCOL Pole mount adapter for use with EXP2230
cameras or explosion protected washers. For pole
diameters from 110 mm (4.3”) to 150 mm (5.9”).
Max load 50 kg (110 lb.). AISI 316L steel.
MPXCW Corner mount adapter for use with MBXMP or
EXP2230 cameras. Max load 50 kg (110 lb.). AISI
316L stainless steel.
MPXWBTA Parapet or ceiling mount bracket for use with
EXP2230 cameras. AISI 316L stainless steel.

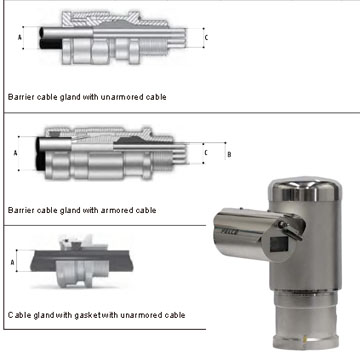

Cabling
Item Description
MPX2CABL41 Cabling, 4m (13.1 ft), unarmored cable, barrier cable gland
MPX2CABL101 Cabling, 10m (32.8 ft), unarmored cable, barrier cable gland
MPX2CABARM41 Cabling, 4m (13.1 ft), armored cable, barrier cable gland
MPX2CAARM101 Cabling, 10m (32.8 ft), armored cable, barrier cable gland
Explosion-Proof Communication Box
A communication box includes a 3-port RJ45 and 1 SFP port Ethernet switch and 24 VAC output for
powering up to one of the following:
l 2x EXC2602 fixed compact cameras
l 2x EXF2230 fixed cameras with 2x washer pump
l 1x EXP2230 PTZ camera with 1x washer pump
MBA1S5A
MBA2S5A
MBA3S5A
Aluminum housing, 230 VAC input.
Aluminum housing, 24 VAC input.
Aluminum housing, 120 VAC input.
MBX1MAA
MBX2MAA
MBX3MAA
AISI 316L stainless steel housing, 230 VAC input.
AISI 316L stainless steel housing, 24 VAC input.
AISI 316L stainless steel housing, 120 VAC input.
MBXMP Adapter plate for communication box to MPXCOL
or MPXCW mounts. AISI 316L stainless steel
housing.
MBXWRE Wrench for opening communication boxes, MBX.
MPXCOL Pole mount adapter for use with MBXMP or
EXP2230 PTZ cameras. For pole diameters from
110 mm (4.3”) to 150 mm (5.9”).
Max load 50 kg (110 lb.).
AISI 316L stainless steel.
MPXCW Corner mount adapter for use with MBXMP or
EXP2230 PTZ cameras. Max load 50 kg (110 lb.).
AISI 316L stainless steel.
Explosion-Proof Washer
A 10L (2.6 gal) tank with integrated manual pump and delivery up to 20m (66 ft), 24 VAC/VDC input.
WASEX2T4AT
WASEX2T4IC
WASEX2T4IN
WASEX2T4KC
WASEX2T4GOR
WASEX2T4UL
ATEX certified solenoid valve.
IECEX certified solenoid valve.
INMETRO certified solenoid valve.
KCs certified solenoid valve (only 24 VDC).
EAC Ex certified solenoid valve.
cULus certified solenoid valve.
NXCOL Pole mount adapter for use with EXF2230
cameras or explosion protected washers. For pole
diameters from 110 mm (4.3”) to 150 mm (5.9”).
Max load 50 kg (110 lb.).
AISI 316L stainless steel.
NXCW Corner mount adapter for use with EXF2230
cameras or explosion protected washers. Max
load 50 kg (110 lb.).
AISI 316L stainless steel.
