Brand:AXIS
Model:M3085-V
Lens:3.1mm

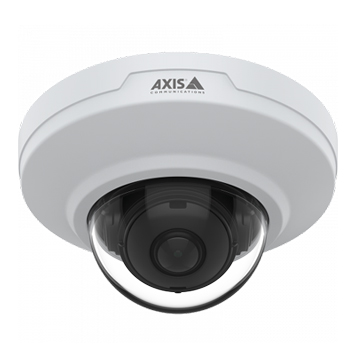

AXIS M3085-V Dome Camera
Fixed 2 MP mini dome with deep learning
This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and
light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing
unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and
classification of different types of objects – all tailored to your specific needs. Furthermore, this compact, easy-toinstall, vandal-resistant camera comes factory focused so there’s no manual focusing required.
> Great image quality in 2 MP
> Compact, discreet design
> WDR and Lightfinder
> Support for analytics with deep learning
> Built-in cybersecurity features
Camera
Image sensor 1/2.9" progressive scan RGB CMOS
Lens 3.1 mm, F2.0
Horizontal field of view: 102°
Vertical field of view: 55°
Fixed iris, IR corrected
Day and night Automatically removable infrared-cut filter
Minimum illumination
With Lightfinder:
Color: 0.18 lux at 50 IRE F2.0
B/W: 0.03 lux at 50 IRE F2.0
Shutter speed 1/19000 s to 1/5 s
Camera angle
adjustment
Pan: ±175°
Tilt: ±80°
Rotation: ±175°
Can be directed in any direction and see the wall/ceiling
System on chip (SoC)
Model CV25
Memory 1024 MB RAM, 512 MB Flash
Compute
capabilities
Deep learning processing unit (DLPU)
Video
Video compression H.264 (MPEG-4 Part 10/AVC) Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Motion JPEG
Resolution 1920x1080 (1080p) to 320x240
Frame rate 25/30 fps with power line frequency 50/60 Hz
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/MBR H.264/H.265
Average bitrate
Multi-view
streaming
Up to 2 individually cropped out view areas in full frame rate
Image settings Compression, color, brightness, sharpness, contrast, white
balance, exposure control, motion-adaptive exposure, WDR: up
to 120 dB depending on scene, dynamic overlays, mirroring of
images, privacy mask
Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Pan/Tilt/Zoom Digital PTZ
Audio
Audio input/output
Two-way audio connectivity via optional accessories using
portcast technology
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1x (EAP-TLS)a
network access control, digest
authentication, user access log, centralized certificate
management, brute force delay protection, signed firmware,secure boot
Axis Edge Vault, Axis device ID
Supported
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa,QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP,RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP,
CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
System integration
Application Programming Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
ONVIF® Profile T, specification at onvif.org
Event conditions Device status: above operating temperature, above or below
operating temperature, below operating temperature, IP address
removed, live stream active, network lost, new IP address, system
ready, within operating temperature
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: manual trigger, virtual input, digital input via accessories
using portcast technology
MQTT: subscribe
Scheduled and recurring: schedule
Video: average bitrate degradation, tampering
Event actions Notification: HTTP, HTTPS, TCP and email
Record video: SD card and network share
MQTT: publish
Pre- and post-alarm video or image buffering for recording or upload
Record video: SD card and network share
SNMP traps: send, send while the rule is active
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
External output activation via accessories using portcast
technology
Data streaming Event data
Built-in
installation aids
Pixel counter
Analytics
AXIS Object
Analytics
Object classes: humans, vehicles (types: cars, buses, trucks,bikes)
Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios
Metadata visualized with color-coded bounding boxes
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event
Applications Included
AXIS Object Analytics, AXIS Video Motion Detection
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing IP42 water- and dust-resistant (to comply with IP42, follow
Installation Guide), IK08 impact-resistant, polycarbonate/ABS casing
Encapsulated electronics
Color: white NCS S 1002-B
For repainting instructions, contact your Axis partner.
Sustainability 57% recycled plastics, PVC free, BFR/CFR free
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2
Typical 3.6 W, max 4.2 W
Connectors RJ45 10BASE-T/100BASE-TX PoE
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
0 °C to 45 °C (32 °F to 113 °F)
Humidity 10–85% RH (non-condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-003 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A,
RCM AS/NZS CISPR 32 Class A,
Safety
IEC/EN/UL 62368-1
Environment
IEC 60068-2-X, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Network
NIST SP500-267
Dimensions Height: 56 mm (2.2 in) ? 101 mm (4.0 in)
Weight 150 g (0.33 lb)
Included
accessories
Installation guide, Windows®
decoder 1-user license
Optional
accessories
AXIS TM3812 Tamper Cover
Black casing
Smoked dome
