Brand：Honeywell
Model：HVCP- 2532IS
Focal Length 4.8 ~ 153mm, 32x Optical Zoom

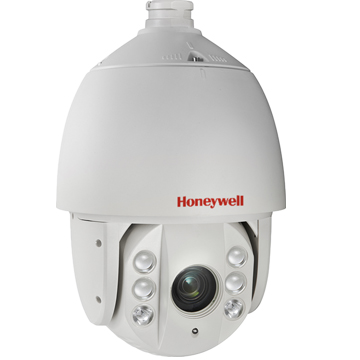

HVCP-2532IS Honeywell 32x Speed Dome Network Camera
Honeywell HVCP -2532KS 32x speed dome network camera and HVCP- 2532IS 32x IR
speed dome network camera have 1080P 25/30FPS HD video images, and provide the
excellent, accurate color reproduction effect. With an IP66 rigid aluminum alloy construction,
these speed domes are ideal choices for midhigh-end surveillance monitoring.
HVCP-2532KS and HVCP-2532IS support 360° continuous rotation and equipped
with 32X auto-focus optics zoom lens, making it convenient and flexible for user to view
a target area. True Day/ Night switch and Ture WDR are ideal choices for areas where
there is high illumination contrast environment. It is particularly useful for surveillance
at car parking lot and highways.
HVCP- 2532IS is equipped with 6 IR LEDs to provide usable black and white videos with
a viewing range of up to 150m from the camera which is ideal choice for monitoring
areas in low illumination or complete darkness. IR light angle can be adjusted to
coincide with the angle of lens for best IR performance.
Honeywell HVCP- 2532KS and HVCP-2532IS integrate the latest PTZ technology and
design, it is ideal choice for a variety of security, monitoring applications, especially
for government, subway, airport, port, defense, campus , sports venues, parks, scenic
spots, communities, industry and highways and other fields to provide high-quality
monitoring solutions.
FEATURES
? 1/2.8” Progressive Scan CMOS
? Support 1920 x 1080@25fps
? Support H.265/ H.264/ MJPEG
? Ture Day/ Night switch
? 120dB WDR
? HLC, BLC, EIS, defog, Object Auto-Tracking
? 32x Optical Zoom, 16x Digital Zoom
? 150m IR (HVCP 2532IS Only)
? Pan: 360° endless, Tilt: 5° ~90°,Presets: 300
? Support 256GB on-board storage
? IP66, IK10 (HVCP-2532KS Only)
? ONVIF
SPECIFICATION
Model HVCP-2532KS HVCP-2532IS
Image Sensor 1/2.8” Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux@F1.6 (AGC ON)
B/W: 0.001Lux@F1.6 (AGC ON)
Color: 0.005Lux@F1.6 (AGC ON)
B/W: 0.001Lux@F1.6 (AGC ON), 0Lux (IR On)
Shutter Speed 1/1 ～ 1/30,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Focal Length 4.8 ~ 153mm, 32x Optical Zoom
Digital Zoom 16x
Focus Mode Auto/Semi-automatic/Manual
FOV Horizontal: 55.6° ~ 2.04° , vertical: 32.4° ~ 1.14° (wide-tele)
Aperture F1.2 ~ F4.4
IR Range / 150m, Smart IR
PTZ
Pan Range 360° endless
Pan Speed 0.1° ~ 250° /s, preset speed: 300° /s 0.1° ~ 160° /s, preset speed: 240° /s
Tilt Range 5° ~ 90° (auto-flip) 15° ~ 90° (auto-flip)
Tilt Speed 0.1° ~ 150° /s, preset speed: 200° /s 0.1° ~ 120° /s, preset speed: 200° /s
Presets 300
Proportional Zoom Support
Patrol Scan 8
Pattern Scan 4
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps
Sub Stream: 50Hz: 704 × 576@25fps; 60Hz: 704 × 480@30fps
Third Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps
H.265 Type Main Profile
H.264 Type Baseline Profile/ Main Profile / High Profile
Video Bit Rate 32Kbps ~ 8Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32~128Kbps (MP2L2)
Audio & Video Function
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
ROI support four fixed areas
Privacy Mask 24 privacy masks
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object
Removal Detection, Unattended Baggage Detection, Object Auto Tracking
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,
DHCP, PPPoE, Bonjour
ONVIF ONVIF (Profile S, Profile G)
Web Browser IE8 or above
Simultaneous Live View 20
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Model HVCP-2532KS HVCP-2532IS
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 2 x Alarm in, 1 x Alarm out
Audio Output 1 x Audio input, 1 x Audio output
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
General
Operating Temperature 30° C ～ 65° C
Operating Humidity 90%
Protection Level IP66, IK10 IP66
Power Supply 24VAC/ PoE+ (802.3at, class4) 24VAC/ Hi PoE
Power Consumption Max. 22W Max. 40W
Material Body: Metal
Dimensions Φ 220 × 280 mm Φ 220 × 353.4 mm
Weight 3kg 4.5kg
Note: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HVCP-2532KS 2MP 32x Speed Dome Network Camera, 1/2.8” Progressive scan CMOS, H.265/ H.264/ MJPEG, TDN, 120dB WDR, 32x Optical zoom,
16x Digital zoom, HLC, BLC, EIS, defog, Object Auto Tracking, support256GB on-board storage, ONVIF, IP66, IK10, 24VAC/ PoE+
HVCP-2532IS 2MP 32x IR Speed Dome Network Camera, 1/2.8” Progressive scan CMOS, H.265/ H.264/ MJPEG, TDN, 150m IR, 120dB WDR, 32x Optical
zoom, 16x Digital zoom, HLC, BLC, EIS, defog, Object Auto Tracking, support 256GB on-board storage, ONVIF, IP66, 24VAC/ Hi PoE
HVCP-ACM Celling mount bracket for HVCP-2532KS and HVCP-2532IS
HVCP-AWM Wall mount bracket for HVCP-2532KS and HVCP-2532IS
