Brand:AXIS
Model:AXIS Q3538-LVE
Focal length 6.2-12.9 mm

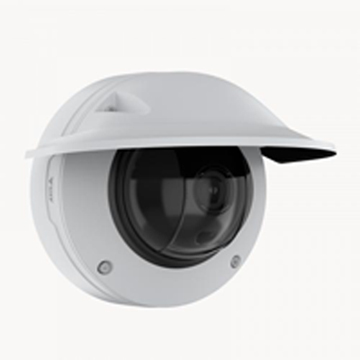

AXIS Q3536-LVE Dome Camera
Advanced dome with deep learning and 4 MP
With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image
quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and
powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly
nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection,
and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module
(TPM).
> Outstanding image quality in 4 MP
> Support for analytics with deep learning
> IR-shielded dome to prevent reflections
> Built-in cybersecurity features
Camera
Image sensor 1/1.8” progressive scan RGB CMOS
Lens Varifocal, 4.3–8.6 mm, F1.5–2.4
Horizontal field of view: 103°–53°
Vertical field of view: 56°–30°
Varifocal, Remote focus and zoom, P-Iris control, IR corrected
Day and night Automatically removable infrared-cut filter
Minimum illumination Color: 0.06 lux at 50 IRE, F1.5
B/W: 0 lux at 50 IRE, F1.5
Shutter speed 1/91000 s to 1 s
Camera angle adjustment Pan ±180°, tilt -43 to +80°, rotation ±175°
System on chip (SoC)
Model ARTPEC-8
Memory 2048 MB RAM, 8194 MB Flash
Compute capabilities Deep learning processing unit (DLPU)
Video H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
compression H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG
Resolution Up to 2688x1512
Frame rate With WDR: 25/30 fps with power line frequency 50/60 Hz
Without WDR: 50/60 fps with power line frequency 50/60 Hz
