GS716TPP NETGEAR 16-Port Gigabit Smart PoE+ Switch with 2 SFP Ports and Cloud management

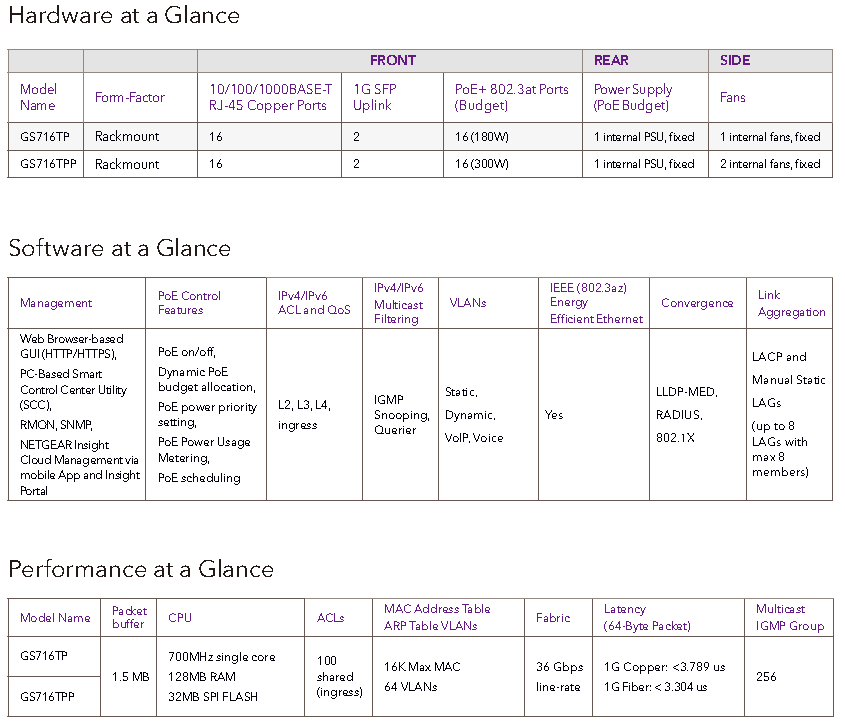

Performance Specification
CPU
700MHz single core
128MB RAM
32MB SPI FLASH
Packet buffer memory
(Dynamically shared across only used ports 1.5 MB
Forwarding modes Store-and-forward
Bandwidth (non-blocking, full duplex 36 Gbps
Priority queues 8
Priority queuing Weighted Round Robin (WRR) and Strict Priority
MAC Address database size
(48-bit MAC addresses) 16K
Multicast groups 256
Number of VLANs 64
Number of DHCP snooping bindings 256
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate
(64 byte packet size) (Mfps or Mpps) 26.8
Power Consumption
Max power
(worst case, all ports used, line-rate traffic) (Watts) 17.01 W 18.06 W
Max power (worst case, all ports used,
full PoE, line-rate traffic) (Watts) 193.90 W 317.74 W
Min power (link-down standby) (Watts) 12.00 W 13.36 W
Heat Dissipation
(min w/o PoE and max with full PoE) (BTU/hr)
Max: 662.05BTU/hr
Min: 40.97 BTU/hr
Max: 1100.46BTU/hr
Min: 45.62 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default)
Auto power down Yes (deactivated by default)
Fan(s)
(temperature- and load-based speed control) 1 2
Physical Specifications
Dimensions (W x D x H)
440 x 204 x 43 mm
( 17.3 x 8.0 x 1.7 in)
440 x 204 x 43 mm
( 17.3 x 8.0 x 1.7 in)
Weight
3.00 kg
(6.61 lb)
3.08 kg
(6.79 lb)
Mounting options Desktop, rack-mount Desktop, rack-mount
Environmental Specifications
Operating
Operating Temperature 0° to 50°C (32° to 122°F)
Humidity 95% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
Storage
Storage Temperature –20° to 70°C (– 4° to 158°F)
Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
